New Version: Cooler Master Aquagate RL-HUC-E8U1 Internal / External Liquid Cooling System for AMD K7(socket 462), K8 (socket 754/ 939/ 940) and Intel P4 (socket 478) - LGA 775 Ready!

View from manufacture

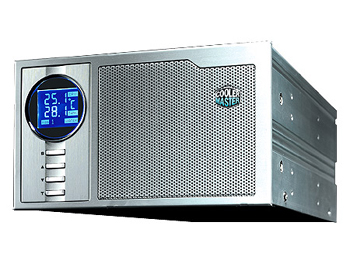

Cooler Master AQUAGATE (RL-HUC-E8U1) Liquid Cooling System

The AQUAGATE Liquid Cooling System is a revolutionary form of heat management for desktop computing platforms. It relies on a special liquid coolant, in order to draw heat away from the CPU and keep it as cool as possible.
LGA 775 Ready!!!


Cooler Master AQUAGATE (RL-HUC-E8U1) Liquid Cooling System

  • All-in-one liquid cooling system, installation is a breeze!
  • Multiple Installation Options - Aquagate can be installed into the standard computer case (using two 5″ drive bays), a spare PSU bay in the computer case, or used as an external device.
  • Adjustable Fan Speed fulfills both low noise and high performance characteristics.
  • Functionality - The LCD on the Aquagate front panel performs real-time system monitoring.
  • Optimum System Safety Customizable water temperature, CPU temperature warning and low water level display.
  • Durability - High quality AC pump ensures reliability and longevity.
  • Compatible with AMD K7, K8, Intel P4 and various other specifications.
  • Warranty void if any preinstalled spare parts are removed

Cooler Master AQUAGATE (RL-HUC-E8U1) Liquid Cooling System

Dimension 220mm (L) x 148mm (W) x 88mm (H)
Case Material Aluminum
Fan Dimension 80x80x25 mm
Fan Speed 2000 / 3100 / 4600 rpm
Fan Bearing Type Rifle bearing
Fan Voltage Rating 12V
Noise Level 23 / 34 / 49 dBA
Power supply AC power (indoor: 110V and 220V) and DC power (DC 12V)
Pump 110V, AC 9W
Power consumption DC 12V, 2.2 W
Water Block Material Copper and Acrylic
Weight 2kg (Main Unit) / 5Kg (Total)
Thermal Resistance Rca 0.31 / 0.25 / 0.23 C/W (tested with p4 3.06G)
Application AMD K7 (socket 462), K8 (socket 754/939/940) and Intel P4 (socket 478 / LGA 775)
dditional Information

Cooler Master AQUAGATE (RL-HUC-E8U1) Liquid Cooling System

Installation Guide: Cooler Master RL-HUC-E8U1 Liquid Cooler

AQUAGATE (AquaTrident (included) + VGA (optional) +NB (optional) + HDD water blocks (optional)) performance test report

ptional Accessories

Cooler Master AQUAGATE (RL-HUC-E8U1) Liquid Cooling System

Cooler Master Thermal Sensor Cable (HSC-U01)
Thermal Conductivity Fluid (SAG-K01-U2)
