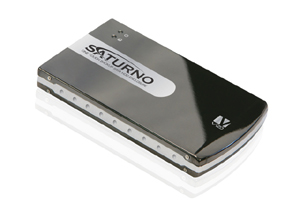

VIZO SAT-250-BK MIRROR BLACK

Saturno

2.5” SATA Hard Drive One Touch Backup Enclosure

DESCRIPTION

VIZO SATURNO, 2.5'' SATA hard drive one touch backup enclosure, is SATA to USB 2.0 / eSATA enclosure which provides interface not only SATA to USB 2.0, but also SATA to eSATA .Fully support 2.5” SATA hard drive. Furthermore, SATURNO has the added advantage of dual one-touch backup buttons for system and file under USB 2.0 host. You can backup/restore or synchronize task just by one touch. With SATURNO, its slim, compact and portable design allows you to bring it wherever you go. It is great convenient of you to back up and transfer your data storage anywhere for your needs.

　

FEATURES

• Compatible with 2.5 SATA Hard Drive
• Support 480Mbps High Speed USB 2.0
• Support 3.0Gbps High Speed external Serial-ATA ( eSATA )
• Dual One-touch Backup buttons for file and system ( only under USB2.0 host )
• 4 functions in it :
  One touch backup for file
  One touch backup for system
  USB to SATA HDD
  eSATA to SATA HDD

• Slim, compact and portable design
• Aluminum housing for excellent heat dissipation
• Side vents improving advection for better system cooling
• Support plug and play & hot swappable
  * Must be attached to SATA 3.0G/eSATA 3.0G hot swappable compliant host to enable hot swappable function
• USB powered device, no external power is required under low HDD power consumption
• Extra power needed for high HDD power consumption or eSATA host used.

　

SPECIFICATIONS

• Case Material : Aluminum
• Host Interface: 480Mbps USB 2.0 (USB 1.1 Compatible) 3.0Gbps High Speed external Serial-ATA( eSATA )
• HDD Type : 2.5 IDE HDD
• One Button Backup: Backup / Restore / Synchronize file and system
  ( ONLY under USB2.0 host )
• Power Supply :
  USB Bus Power
  External USB Bus POWER ( DC 5V/1A, included )
  External AC/DC POWER Adapter( Option, AC input: 100~ 240Vac , DC output: +5V/1A, not included )
• Indicators : Blue for POWER on / Red for file access
• Weight : 75 g (without HDD)
• Dimensions : 135(L) x 76(W) x 15(H) mm

　

SYSTEM REQUIREMENT

For USB 2.0 : Windows ME/2000/XP/Vista or Mac 10.2 above
One USB port available for USB Host

For eSATA : Windows 2000/XP/Vista or Mac 10.2 above
Proper SATA/eSATA port or SATA card available for eSATA host
Must have SATA 3.0G/eSATA 3.0G hot swappable compliant host to enable hot swappable function


　

PACKAGE INCLUDES

2.5” HDD external enclosure
USB Y Type Cable
Power USB Y Type Cable
eSATA cable
SATA to eSATA adapter cable w/bracket
Screw fitting kit
Cleaning cloth
Pouch
User manual and driver CD
