DESCRIPTION

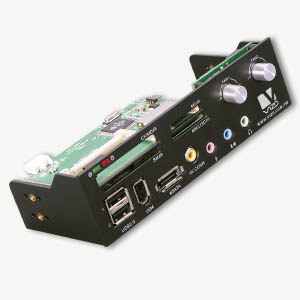

VIZO Master panel II fits for 5.25 bay and bears USB2.0 card reader,
dual-channel fan controller, eSATA port and multi-I/O function ports in one
module which provides the convenient way to connect your devices and manually
adjust your system fans' speed at the same time.With Master Panell II, you can
do it in the front of your PC and don't need to go to the back.
It is the most economical, high performance, space saving unit for your PC.
FEATURES
- For 5.25 Bay
- USB2.0 internal card reader 4 memory slots are active, which allows you to
copy data between the different memory cards at the same time
- Dual fan speed control knobs (4V -12 V)
- Multi I/O transfer function (USB*2/ 1394 / eSATA/ RCA / audio*3)
- Support hot plug and hot swappable
Must be attached to hot swappable compliant host to enable hot swappable
function
- No need to go to the back, do it in the front
- Support WIN 98SE / ME / 2000 / XP / Vista
- Support MAC OS 9.X/ X or above
- Model: MTP-201
SPECIFICATION
- Dimensions: 148(W) x 42(H) x 70(D) mm
- Card reader Interface: USB2.0
- Power Mode: USB power / DC 12V, 5V
- Memory card slot:
4 slots for: Compact Flash Type I/II, Micro Driver, Memory Stick(Duo*), Memory
Stick Pro(Duo*), Smart Media, SD, mini SD*, Multi Media card, RS-MMC*, microSD*
*: need card adapter
- Fan Control: 2*3pin fan RPM control knobs (4V-12V)
- Weight: 90g
PACKAGE INCLUDES
- Master Panel II Main Module
- Power Adapter Cable
- Fan Cables
- USB Cable
- MIC Cable
- 1394 Cable
- Line in / out Cable
- SATA Cable
- RCA Cable
- Accessory Package
- 98 Driver CD for Card Reader
- User Manual
|
