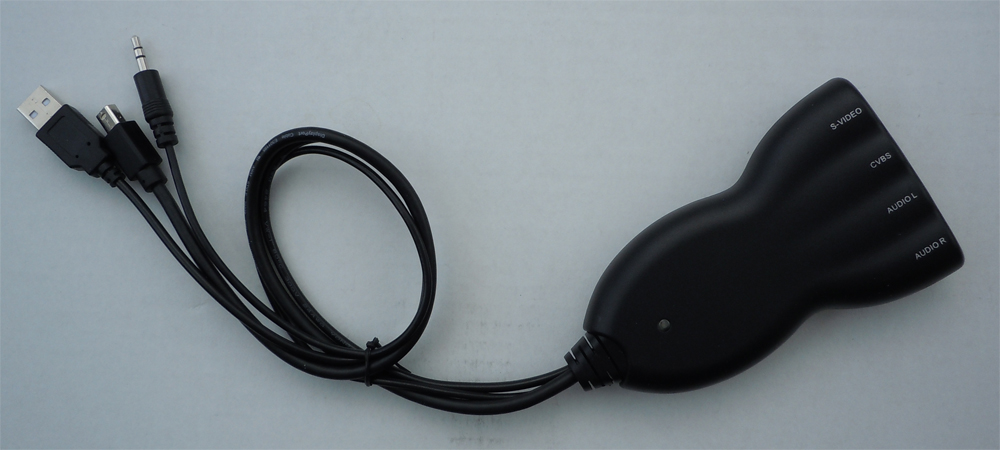

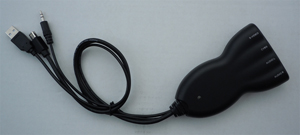

LENKENG Mini Displayport To Composite Adapter Video and S-Video Converter LKV386



Details:
SKU:LKV386
View from manufacture

Product Introduction

DisplayPort to Composite Video and S-Video Converter allows high resolution device with DisplayPort interface to be displayed on TV. It supports high-quality video up to DVD level and above. It is Plug-and-play, and no software is needed.

Specification

DisplayPort Resolution 640x480@60/75Hz; 800x600@60/75Hz;1024x768@60/75Hz
Output 1xComposite Video, 1xS-Video
TV system NTSC ( Available Options: PAL )
Output level CVBS (1.0Vpp);S-Video(Y: 1.0Vpp, C: 0.3Vpp)
Output Resistance 75Om
Power Supplier DC5V
orking Temperature -25~75
Working Humidity 10%~65%
Product Dimension 130x75x27mm (L x W x H)

Application:

-Business presentation,

-Education and training,

-Commercial promotion

-Computer game

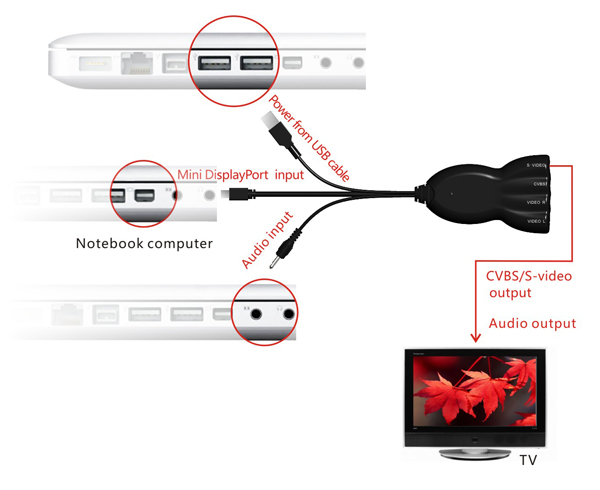

Connection Image : please check the detail photos on the top.

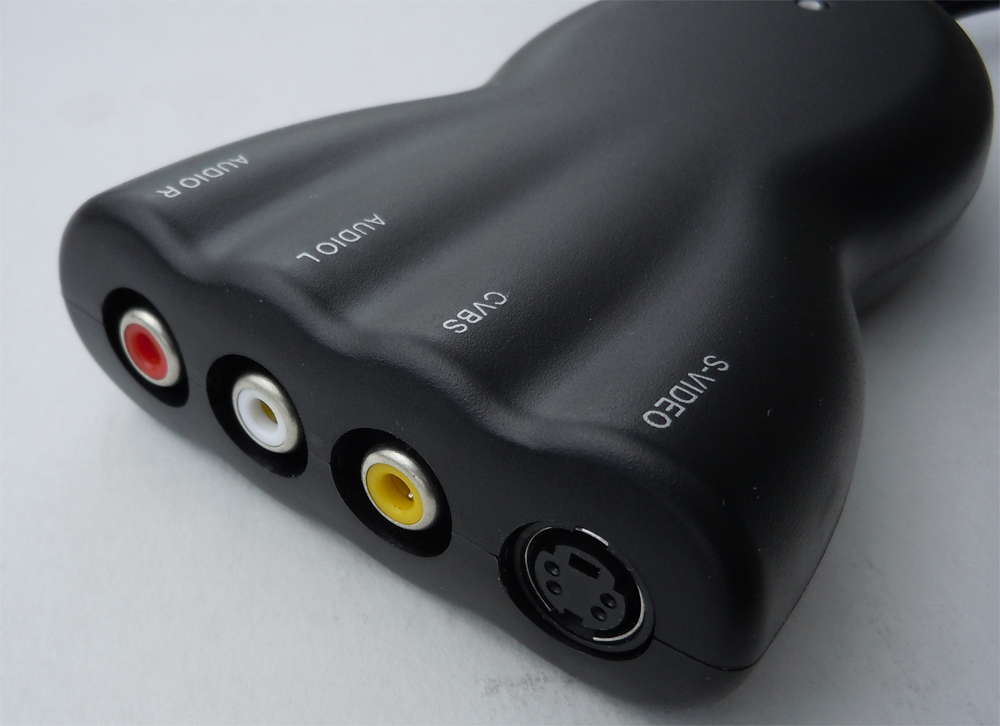

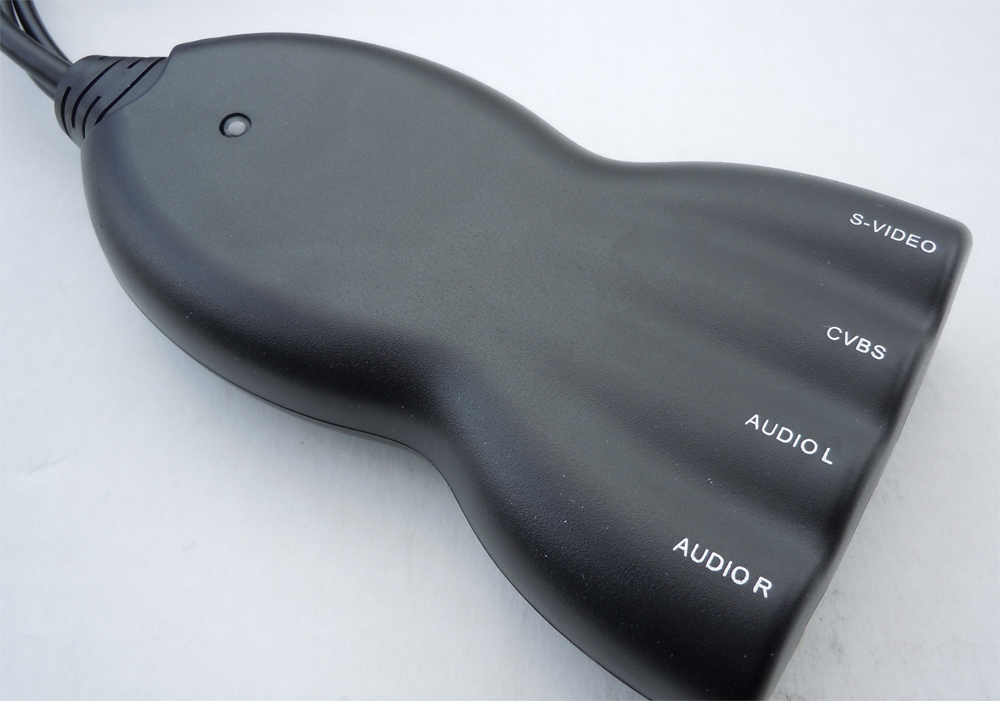

Interface Information: please check the detail photos on the top.

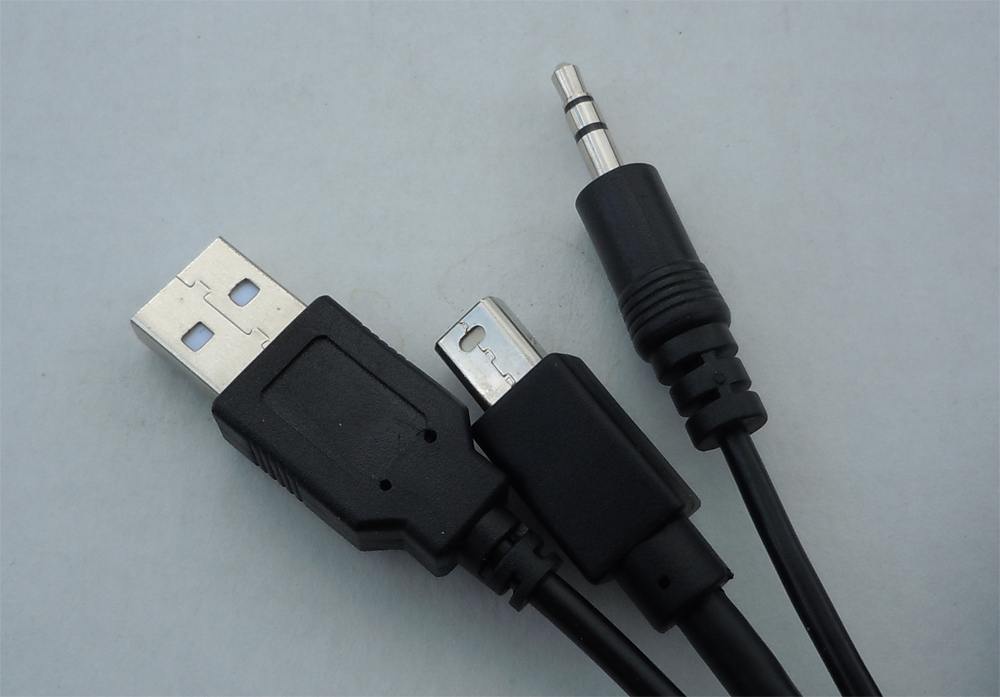

1). USB Power Input;

2). DisplayPort Input;

3). Audio Input;

4). LED Indication;

5). Audio Right Output;

6). Audio Left Output;

7). Composite Video Output;

8). S-Video Output

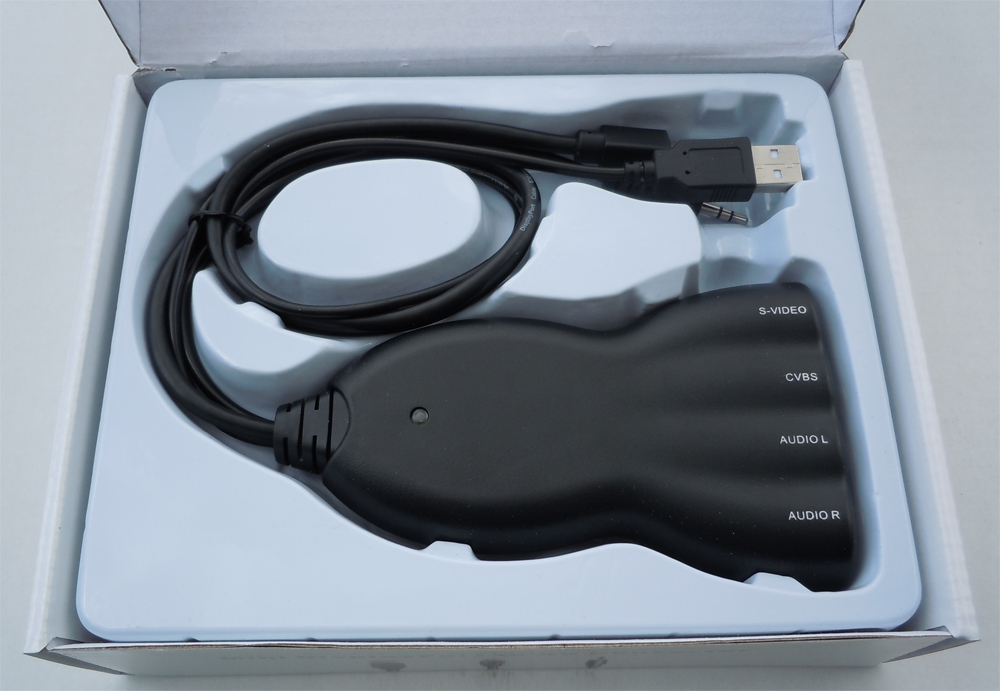

Accessory and Package:

Item

Quantity ( pcs )

Remark

DisplayPort to AV Converter

1

Power supply

1

RCA cable

1

1.5m

S-Video cable

1

1.5m

User Manual

1
