Model: M9
1080P High Definition 3.5 HDD DVR Multimedia Player
· Powerful
full HD media player with RTD1283DDC+ processor, record, store and play;
· One of the best cost-performance media players on the market, supports almost all the
multimedia formats;
· Enjoy full HD movies, favorite photos or music on your TV conveniently;
· Support TV record and both MPEG2 & newer MPEG4 H.264 dual DVBT broadcast*,
· Support TV record, no longer miss your favorite sports events and television programs;
· With beautiful front VFD screen to display the playback status and progress and other
list functions;
· Support NAS, wired & wireless network**, online video(such as YouTube…), RSS
news and BT downloading;
· Support Blu-ray disk format m2ts and BD-ISO, also support gapless playback;
· Standard HDMI 1.3, downward compatible with HDMI 1.2 and 1.1;
· Supports next generation 7.1 DTS-HD master audio output;
· Support built-in 3.5” SATA hard drive up to 2TB capacity;
· Support USB interface with HOST function, and able to directly play the files stored on
USB device(such as flash drives, mobile hard disk and relevant devices), and also support
hot swap of the device;
· Built-in external SATA interface to transfer huge multimedia data in high speed;
· Beautiful aluminum alloy and high quality ABS housing, solid protection;
· Built-in low noise cooling fan, more stable performance in high-temperature
environment.
· Perfect match of home theater, nice choice for personal multimedia enjoyment and home
entertainment!
*Need an internal DVB-T tuner module which may be not included.
**Need an external USB Wi-Fi dongle which is not included in the accessories,
optional.
Product
Specifications:
Main Processor: |
Realtek RTD1283DDC+ |
Supported Internal Hard Drive: |
3.5” SATA hard drive up
to 2TB |
Enclosure Color and Material: |
Black and Aluminum Alloy(Brushed
Surface)+ABS |
Supported File System Formats: |
EXT3, FAT32 and NTFS |
Data Interface: |
SATA, USB 2.0(compatible with
USB 1.1/1.0), USB 2.0 Host |
Supported Networking Protocol: |
TCP/IP,
UPNP, Wi-Fi 802.11n(up to 300Mbps) and P2P |
Power Adapter: |
110-220V AC input, 12V/2A DC
output |
Language Supported: |
English, French, German,
Spanish, Italian, Portuguese, Dutch, Greek, Polish, Russian, Swedish, Finnish, Japanese,
Simplified Chinese, Traditional Chinese, Korean, Vietnamese, Thai |
Tuner: |
Dual digital DVB-T tuner; |
TV Recording: |
Recording in MPEG-2 format at
720×576 resolution |
Video Output Interface: |
composite video, component YPbPr
and HDMI; |
Audio Output Interface: |
optical fiber audio, coaxial 5.1
channel audio and stereo audio R/L |
AV Inout Interface: |
Composite Video; Composite
Audio; Dual Digital DVB-T TV signal |
Supported Video Formats: |
AVI/ MKV/ TS/ TP/ TRP/ M2TS/
MPG/ MP4/ MOV/ M4V/ VOB/ ISO/ IFO/ DAT/ WMV/ ASF/ RM/ RMVB/ FLV up to 720p/ 1080i/ 1080p/
BD-ISO |
Supported Video Codecs: |
MPEG-1 / MPEG-2 / MPEG-4
SP/ASP/AVC (H.264 | x264) / XviD / DivX / WMV9 (VC-1) / RealVideo 8/9/10 (up to 720P) |
Supported Audio Formats: |
MP3, WMA, WAV, OGG, AAC, LPCM,
FLAC, AC3 and APE |
Supported Image Formats: |
JPG/JPEG, BMP, PNG, GIF, TIF,
TIFF |
Supported Subtitle Formats: |
sub, smi, ssa, ass, srt, idx +
sub, PGS |
Remote Control: |
Full-function infrared remote
control |
Operating Temperature: |
5? to 50? |
Product and Packing Size: |
210×160×54mm(Product);
247×152×220mm(Packing) |
Accessory List: |
1 External AC Power Adapter; 1
Composite AV Cable;
1 HDMI 1.3 Quality
Cable(Optional); 1 USB A- mini B Data Cable;
1 Remote Control; 2 AA
Batteries; 1 User Manual. |

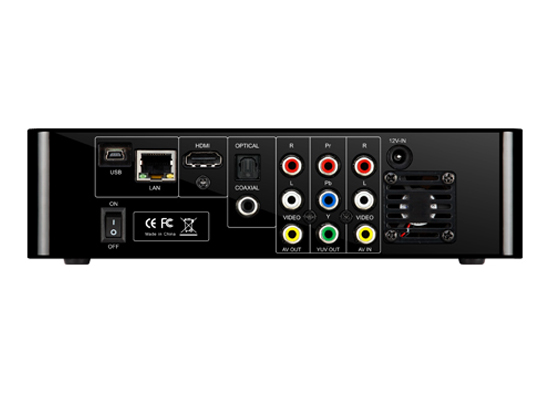

Easy Connection:
Product
Advantage:
1) Best Cost-Performance Design
2)
Multiple AV I/O and Data Interfaces
· Best
cost-performance design with high quality · Easy connection to
TV and storage devices
· With useful VFD
screen to indicate playback status · HDMI, AV, YPbPr,
Optical fiber and coaxial
· Easy to install
internal 3.5” SATA hard drive
· WAN, SATA, USB 2.0
interface and USB host
|
