Model: M7
1080P High Definition Network Multimedia Player
Product Features:
· One of the best cost-performance 1080P high definition HDD multimedia player
on the market;
· With powerful RTD1073DDC+ processor, supports almost all the multimedia formats;
· Enjoy full HD movies, favorite photos or music on your TV conveniently;

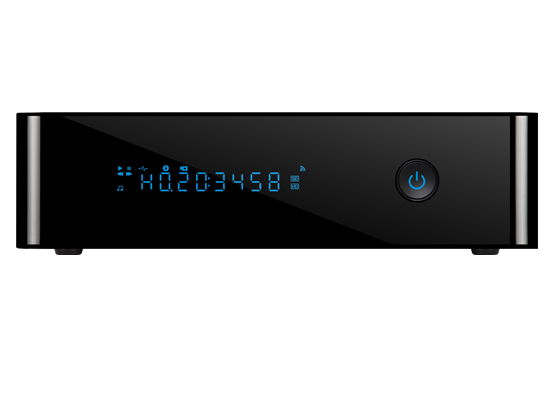

· With beautiful front VFD screen to display the playback status and progress and other
list functions;
· Support NAS, wired & wireless network*, online video(such as Youtube, YouKu), RSS
news and BT downloading;
· Support Blu-ray disk format m2ts and BD-ISO, also support gapless playback;
· Standard HDMI 1.3, downward compatible with HDMI 1.2 and 1.1;
· Supports next generation 7.1 DTS-HD master audio output;
· Support built-in 3.5” SATA hard drive up to 2TB capacity;
· Support USB interface with HOST function, and able to directly play the files stored on
USB device
(such as flash drives, mobile hard disk and relevant devices), and also support hot
swap of the device;
· Built-in external SATA interface to transfer huge multimedia data in high speed;
· Beautiful aluminum alloy and high quality ABS housing, solid protection;
· Built-in low noise cooling fan, more stable performance in high-temperature
environment;
· Perfect match of home theater, nice choice for personal multimedia enjoyment and home
entertainment!
*Need an external USB Wi-Fi dongle which is not included in the accessories,
optional accessory.
Product
Specifications:
Main Processor: |
Realtek RTD1073DDC+ |
Supported Internal Hard Drive: |
3.5” SATA hard drive up
to 2TB |
Enclosure Color and Material: |
Black and Aluminum Alloy(Brushed
Surface)+ABS |
Supported File System Formats: |
EXT3, FAT32 and NTFS |
Data Interface: |
SATA, USB 2.0(compatible with
USB 1.1/1.0), USB 2.0 Host |
Supported Networking Protocol: |
TCP/IP,
UPNP, Wi-Fi 802.11n(up to 300Mbps) and P2P |
Power Adapter: |
110-220V AC input, 12V/2A DC
output |
Language Supported: |
English, French, German,
Spanish, Italian, Portuguese, Dutch, Greek, Polish, Russian, Swedish, Finnish, Japanese,
Simplified Chinese, Traditional Chinese, Korean, Vietnamese, Thai |
Video Output Interface: |
composite video, component YPbPr
and HDMI; |
Audio Output Interface: |
optical fiber audio, coaxial 5.1
channel audio and stereo audio R/L |
Supported Video Formats: |
AVI / MKV / TS / TP / TRP / M2TS
/ MPG / MP4 / MOV / M4V / VOB / ISO / IFO / DAT / WMV / ASF / RM / RMVB /
FLV resolution up to 720p /
1080i / 1080p / BD-ISO |
Supported Video Codecs: |
MPEG-1 / MPEG-2 / MPEG-4
SP/ASP/AVC (H.264 | x264) / XviD / DivX / WMV9 (VC-1) / RealVideo 8/9/10 (up to 720P) |
Supported Audio Formats: |
MP3, WMA, WAV, OGG, AAC, LPCM,
FLAC, AC3 and APE |
Supported Image Formats: |
JPG/JPEG, BMP, PNG, GIF, TIF,
TIFF |
Supported Subtitle Formats: |
sub, smi, ssa, ass, srt, idx +
sub, PGS |
Remote Control: |
full-function infrared remote
control |
Operating Temperature: |
5? to 50? |
Product and Packing Size: |
210×160×54mm(product);
247×152×220mm(Packing) |
Accessory List: |
1 External AC Power Adapter; 1
Composite AV Cable;
1 HDMI 1.3 Quality Cable; 1 USB
A-mini B Data Cable;
1 Remote Control; 2 AA
Batteries; 1 User Manual. |

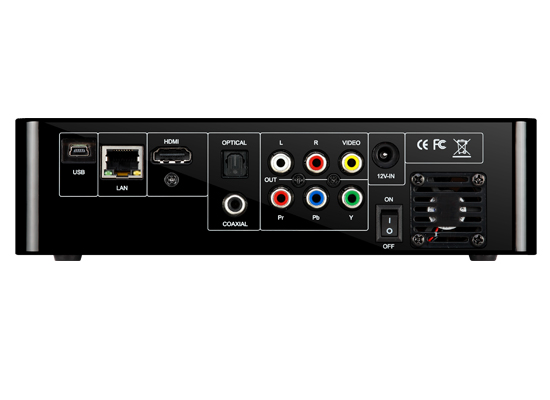

Easy Connection:
Product
Advantage:
1) Best
Cost-Performance Design 2)
Multiple A/V Outputs and Data Interfaces
· Best cost-performance design with
high quality · Easy connection to
TV and storage fevices
· With useful VFD
screen to indicate playback status · HDMI, AV, YPbPr,
Optical fiber and coaxial
· Easy to install
internal 3.5” SATA hard drive · WAN, SATA, USB 2.0
interface and USB host
|
