EAGET H5 1080P High Definition Network Multimedia Player with 3.5 inch SATA HDD drawer

View from manufacture

Model: H5
1080P High Definition Network Multimedia Player

EAGET Released a New Sigma 8655 Based Media Player - H5

EAGET has released a new media player this December - H5!
This model is EAGET's exclusive industrial design, with powerful Sigma Designs 8655 processor!
Supports NAS, wired & wireless network, online video and downloading(BT& PT);
With innovative hard disk drawer(patented), very easy to install and change hard drives;
Supports almost all the multimedia formats such as MKV/TS/WMV/ISO and PGS;
Supports next generation 7.1 DTS-HD master audio output;
Built-in eSATA and USB 3.0 interfaces, all aluminum housing and large VFD screen.

Product Features:
Powerful 1080p HD multimedia player with Sigma Designs 8655 processor;

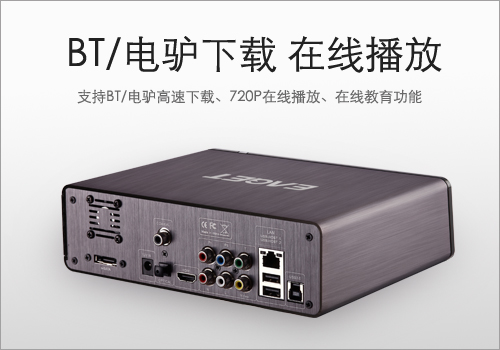

Support NAS, wired & wireless network*, online video, internet radio, RSS news and BT&PT downloading;
Support DVB-T and DMB-TH broadcast, enjoy high quality digital television in every country**;
Support Blu-ray disk format m2ts and BD-ISO, gapless playback and Blu-ray simple menu display;
Standard HDMI 1.3, downward compatible with HDMI 1.2 and 1.1;
Supports next generation 7.1 DTS-HD master audio output;
Support built-in 3.5 SATA hard drive up to 2TB capacity;
Enjoy full HD movies, favorite photos or music on your TV conveniently;
Support USB interface with HOST function, and able to directly play the files stored on USB device
(such as flash drives, mobile hard disk and relevant devices), and also support hot swap of the device;
With beautiful front VFD screen to display the playback status and progress and other list functions;
Innovative hard disk drawer(patented), very easy to install and change hard drives;
Built-in eSATA and USB 3.0 interface to transfer huge multimedia data in high speed;
All aluminum housing, solid protection and more stable performance in high-temperature environment;
Perfect match of home theater, nice choice for personal multimedia enjoyment and home entertainment!
* Need an external USB wifi dongle which is not included in the accessories, optional accessory.
** Need an external USB DVB-T tuner which is not included in the accessories, optional accessory.

Product Specifications:

Main Processor:

Sigma Designs 8655

Supported Internal Hard Drive:

3.5 SATA hard drive up to 2TB

Enclosure Color and Material:

Steel Gray and Aluminum Alloy(Brushed Surface)

Supported File System Formats:

EXT3, FAT32 and NTFS

Data Interface:

eSATA, USB 3.0(compatible with USB 2.0/1.1/1.0), USB 2.0 Host

Supported Networking Protocol:

TCP/IP, UPNP, Wi-Fi 802.11n(up to 300Mbps) and P2P

Power Adapter:

110-220V AC input, 12V/2A DC output

Language Supported:

English, French, German, Spanish, Italian, Portuguese, Dutch, Greek, Polish, Russian, Swedish, Finnish, Japanese, Simplified Chinese, Traditional Chinese, Korean

Video Output Interface:

composite video, component YPbPr and HDMI;

Audio Output Interface:

optical fiber audio, coaxial 5.1 channel audio and stereo audio R/L

Supported Video Formats:

High Definition: H.264, VC-1, Mpeg2-HD, DivxHD, XvidHD, MPG, MPEG, TS, TP, MOV, M2TS, MKV, X.264, WMV9;

Standard Definition: MPEG-1, MPEG-2, MPEG-4, ISO, VOB

Supported Audio Formats:


Supported Image Formats:


Supported Subtitle Formats:

sub, smi, ssa, ass, srt, idx + sub, PGS

Remote Control:

full-function infrared remote control

Operating Temperature:

5? to 50?

Product and Packing Size:

20816960mm(product); 247152220mm(Packing)

Accessory List:

1 External AC Power Adapter; 1 Composite AV Cable;

1 HDMI 1.3 Quality Cable; 1 USB A-B Data Cable;

1 Remote Control; 2 AA Batteries; 1 User Manual.

Easy Connection:

Product Advantage:

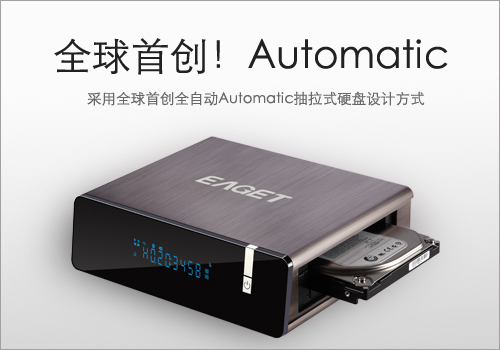

1) Innovative Hard Disk Slot Design(Patented)

Innovative Hard Disk Slot Design (Patented)
Just a Few Seconds to Install or Change a HDD
Nice solution for Personal Storage& Entertainment

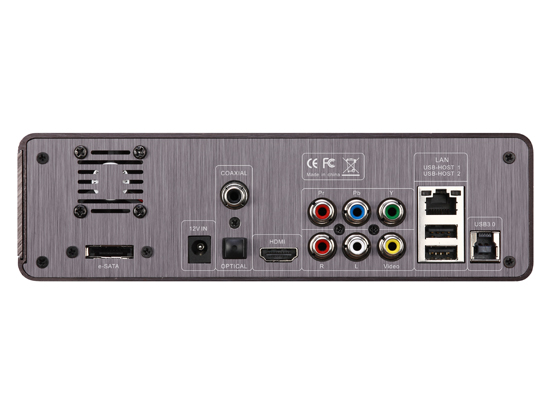

2) Multiple A/V Outputs and Data Interfaces

Easy Connection to TV and Storage Devices
HDMI, AV, YPbPr, Optical Fiber and Coaxial
WAN, eSATA, USB 3.0 and USB 2.0 Host
