Introduction:
Maximum PC Dream Machine 2007
Performance Meets Silence

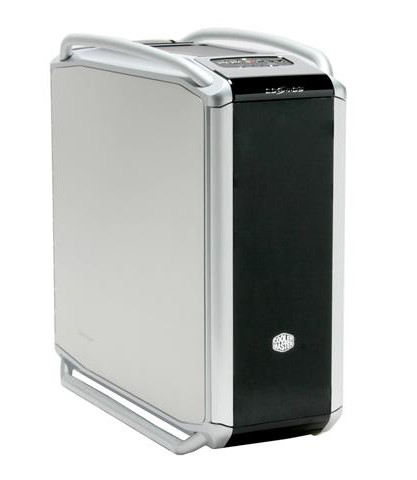

In 2007, Cooler Master created COSMOS, a serene spirit
within a luxurious, high-performance body. Each line of COSMOS is born
with elegant heritage originated from devotion to prudence and innovation.
It is captivating to know such power is enclosed behind the silence.
Product Microsite :
http://www.coolermaster.com/microsite/Cosmos/
COSMOS Blog:
http://www.coolermaster.com/microsite/Cosmos/blog/
|
Specifications:
Superior Silent Environment:
> Soundproof materials applied to build a quiet
environment
> Sound barrier design reduces vibration for silent operation
Thermal Solution:
> Dual bottom air intakes to enhance air flow and reduce
system noise
> Six aluminum detachable HDD modules with ventilation holes for
optimizing cooling performance
> Side removable VGA cooling tunnel to advance thermal airflow.
Tool-free User-friendliness:
> Patented finger pressing buttons for quickly
maintaining or upgrading 5.25” drive devices
> Tool-free design for opening side panel conveniently.
Cable Management:
> Separate HDD modules make it easy to organize cable
direction
> Cable management system for better cable routing and neatness
|
Specifications:
|
Available Color |
Chassis
Appearance: Silver, Bezel: Black |
|
Dimension (W / H / D) |
(W) 266 x (H)
598 x (D)628 mm |
|
Weight |
Net Weight :
16.9 kg ; Gross Weight : 18.9 kg |
|
Material |
Chassis:
Steel, Appearance: Aluminum |
|
Motherboards |
Extend ATX,
ATX |
|
5.25 Drive Bay |
5 Exposed
(without the use of exposed 3.5 inch drive bay) |
|
3.5 Drive Bay |
6 ( Hidden )
; 1 Exposed ( if converted from one 5.25 inch drive bay) |
|
I/O Panel |
USB 2.0 x 4,
IEEE 1394 x 1, Audio x 1, SPK x 1, eSATA x 1 |
|
Cooling System |
Bottom fan (
intake ) :120x120x25 mm x 1, 1200 rpm, 17 dBA (included),
Top fan (exhaust) : 120x120x25 mm fan x 2, 1200 rpm, 17 dBA
(included),
Rear fan (exhaust) : 120x120x25 mm x 1 (included),
HDD fan : 120x120x25 mm x 1 (optional),
VGA Wind |
|
Expansion Slots |
7 |
|
Power Supply |
PS2 / EPS 12V
( optional ) |
|
Other |
Exclusive
Carrying Box |
|
