Cooler Master CM Stacke 830 (RC-830-SSN1) All Aluminum ATX/BTX Computer PC Tower Case

View from manufacture

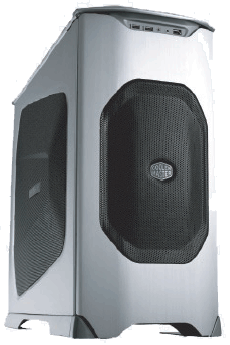

Cooler Master CM Stacker 830 (RC-830) Tower Case

ATX/ BTX dual-compatibility mechanism (BTX converter kit included)

CM Stacker 830 will lead the market with its stylish streamlined aluminum design, extremely powerful functionality and its brilliant ATX/BTX dual-compatibility mechanism. CM Stacker 830 has special side fan bracket and total supports up to nine 120mm fans. It can also be upgraded to accommodate with Cooler Master’s latest liquid cooling system to achieve the best thermal performance with the most silent performance. This ground-breaking chassis is designed with value-added functionality, unmatchable upgrade ability, tool-free user-friendliness, and superior thermal performance.


Cooler Master CM Stacker 830 (RC-830) Tower Case

Value-added functionality
-Front panel opens to the left or to the right for easy access
-Power supply may be installed up wards or downwards for better airflow and neat cable manager.
Unmatchable upgrade ability
-Supports up to nine 5.25 drives
-Multi-Positioning for the 4-in-3 device modules, providing maximum flexibility in the use of space
Tool-free user-friendliness
-Screwless slots
-Exclusive fan frame design provides easy screwless assembly
-Side-opening design for remove 5.25” shield easily
Superior Airflow
-Accommodates up to nine 120mm fans
-High ventilation openings on the top and the sides for excellent thermal Management
Innovative Style
-The match of silver and black colors enrich the whole appearance
-Solid constructor and streamlined aluminum design


Cooler Master CM Stacker 830 (RC-830) Tower Case

Available Color Silver ( Black Mesh )
Dimension (W) 250mm x (H) 536mm x (D) 638mm
Material Aluminum
Motherboards E-ATX, ATX, m-ATX, BTX, m-BTX, PICO-BTX
5.25 9 (Exposed)
3.5 4 (Hidden) from 1 x 4-in-3 Device Module included; 1 x 3.5 face plate included
I/O Panel Dual I/O Panel in Front and Top USB 2.0 x 4, IEEE 1394 x 1, MIC x 1, SPK x 1
Cooling System Front Fan (Intake): One 120x120x25 mm (LED); Rear Fan (Exhaust): One 120x120x25 mm
UP to 9 x 120mm FAN (Optional) ; Front x 3,Top x 1, Rear x 1, Side x 4 (Side fan bracket is also for 140mm x 4 or 120mm x 4 or 92mm x 4 or 80mm x 4 or 60mm x 4, or 300mm Cross Flow Fan x1 or MIX)
Expansion Slots 7
BTX Upgrade Kits SRM, BTX Air Duct, and BTX I/O shield included
Power Supply Standard ATX PS2 (Optional)

dditional Information

Cooler Master CM Stacker 830 (RC-830) Tower Case

Product Release Sheet: Cooler Master CM Stacker 830 (RC-830)Tower Case

ptional Accessories

Cooler Master CM Stacker 830 (RC-830) Tower Case

4-in-3 Device Moduel (STB-3T4)
Cross Flow Fan (STF-B01)
