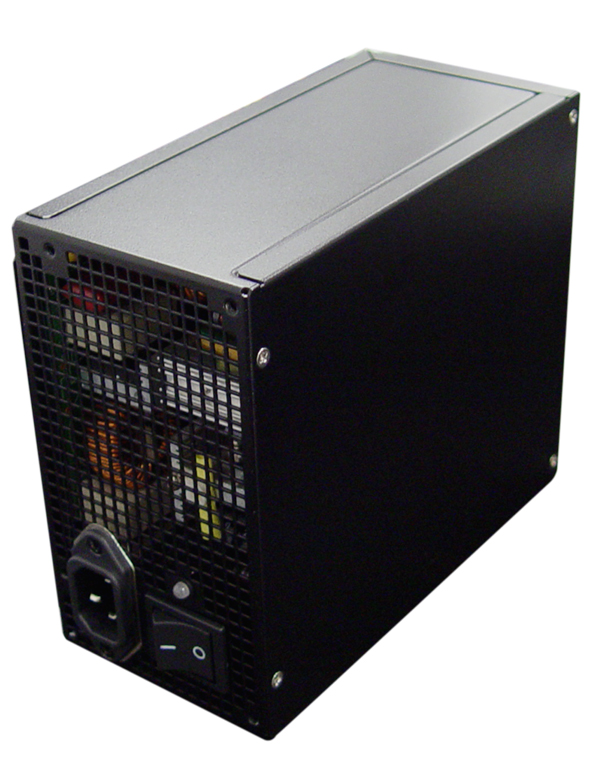

SilverStone ST75ZF 750W Power Supply- SLI Ready
After successfully bringing industrial power supply technology into
the desktop market, SilverStone is again setting the benchmark for
consumer-level power supplies. The new Zeus is now up to 750W at 50°C
while maintaining a size that is easy to integrate into most systems.
With an incredible 60A combined (over 700W) for the +12V rail alone, the
ST75ZF is capable of powering any top of the line systems available
today and beyond. Coupled with higher than 80% efficiency and top
quality cooling fan, the ST75ZF is also quieter and more user friendly
than its predecessor while providing more power.
|
 eatures
SilverStone ST75ZF 750W Power Supply- SLI Ready
- Quad +12V rail for superior performance
- Dual PCI-E 6pin connectors (SLI & CrossFire ready)
- Industrial class components
- Support for ATX 12V 2.2 & EPS12V
- Active PFC
- Efficiency greater than 80% (max. 86%)
|
 pecifcations
SilverStone ST75ZF 750W Power Supply- SLI Ready
|
Max. DC Output |
750W |
|
Load Range
|
| |
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
+12V4
|
+5VSB
|
-12V
|
-5V
|
| Max.(Amps) |
24A
|
30A
|
18A
|
18A
|
18A
|
18A
|
3.0A
|
0.5A
|
/
|
| Peak (Amps) |
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
| Min.(Amps) |
1.5A
|
1.0A
|
0.8A
|
0.8A
|
0.5A
|
0.5A
|
0.1
|
0
|
/
|
| Range(%) |
+/-5％
|
+/-5％
|
+/-5％
|
+/-5％
|
+/-5％
|
+/-5％
|
+/-5％
|
+/-10％
|
/
|
Ripple
(mVp-p)
|
50mV
|
50mV
|
120mV
|
120mV
|
120mV
|
120mV
|
50mV
|
120mV
|
/
|
|
|
combined+3.3 , +5V |
180W |
|
combined +12V |
60A/720W |
|
Input Voltage
|
90V ~ 264V (Auto
Range) |
|
Input Frequency Range |
47Hz ~ 63Hz
|
|
PFC |
Active PFC ( 0.95 at
nominal input voltage.) |
|
Efficiency |
>80% |
|
MTBF |
100,000 hours at 25°C,
full load |
|
Operating temperature |
0 ~ 50°C |
|
Protection |
Over Current
Protection, Over Voltage Protection, Short Circuit Protection, No
Load Operation |
|
Connectors |
24/20-pin motherboard
connector |
|
8-pin ATX12V connector |
|
8pin to 4pin ATX12V
adapter connector |
|
6-pin AUX connector |
|
Dual 6-pin PCI-E |
|
SATA power connector |
|
4-pin IDE power
connector |
|
4-pin floppy power
connector |
|
Color |
black (lead-free
paint) |
|
Cooling System |
1x 80mm ball bearing
fan |
|
Noise Level |
24 dBA minimum |
|
Weight |
2.9 kg |
|
Dimension |
150 mm (W) x 86 mm (H)
x 180 mm (D) |
|
|
|
