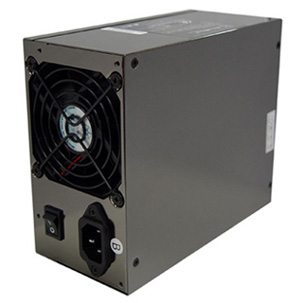

SilverStone ST65ZF 650W Power Supply
With the highest
rated output of any SilverStone power supplies, the Zeus series represents the
pinnacle of PS2 (ATX) design. The ST65ZF can deliver exceptionally stable,
continuous 650W (710W peak) output that is normally reserved for industrial
server power supplies. Possessing quad +12V rails, advanced connector options,
and an intelligent thermal/load controlled fan, the Zeus ST65ZF is the ultimate
choice for top of the line systems.
|
 eatures
SilverStone ST65ZF 650W Power Supply
- The first 650W NVIDIA Certified
SLI Power Supply
- Dual PCI-E
6pin connectors (SLI certified)
- Dual PCI Express
Connectors
- Quad +12V
rail for superior performance
- Four Serial
ATA connectors
- Industrial
class components
- Support for
ATX 12V 2.0 & EPS 12V
- Active PFC
|
 pecifcations
SilverStone ST65ZF 650W Power Supply
|
Color |
Titanium black |
|
Cooling System |
1x
80mm ball bearing fan |
|
Noise Level |
29 dBA minimum |
|
Weigh |
2.7 kg |
|
Dimension |
150 mm (W) x 86 mm (H)
x 180 mm (D) |
|
MTBF |
100,000 hours at 25'C,
full load |
|
Model
|
Output
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
+12V4
|
-12V
|
5Vsb
|
|
ST65ZF
|
650W / 710W*
|
33A
|
24A
|
13A/18A*
|
18A
|
16A
|
8A/13A*
|
0.5A
|
2.0A
|
|
*Peak
+3.3V & +5V : 170W Max.
+12V1 & +12V2 & +12V3 & +12V4 : 504W(42A) / peak 540W(45A)
Total DC output : 650W Max / 710W Peak.
Protection : Over Current Protection , Under voltage protection , Over Voltage
Protection , Short Circuit Protection , No Load Operation
+5V min. load is
10A when +12V output is 30A to 38A
+5V min. load is 15A when +12V output is 38A to
42A
|
|
