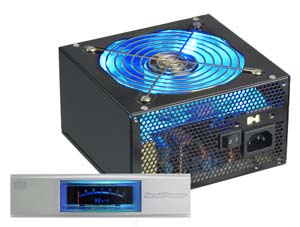

Cooler Master Super Silent Real Power RS-450-ACLY Active PFC 450W
Power Supply
Cooler Master is racing to meet the demands of reliable, stable and
ultra-silent power with REAL POWER 450W. It has high octane performance
you can SEE with the innovative analog dial that mounts right on the
front panel of your machine. Blast down the Information Superhighway,
spin those high RPM hard drives, crank up those cooling fans, turn on
the lights and turn up the sounds – you can see REAL POWER has more
power. The award winning team at Cooler Master now gives you continuous
power – reliable power – quiet power – smart power – REAL POWER. Visit
your nearest retailer today and SEE REAL POWER.
|
 eatures
Cooler Master Super Silent Real Power RS-450-ACLY Active PFC 450W
Power Supply
- Fully supports the newest Intel standard ATX 12V Version 2.0

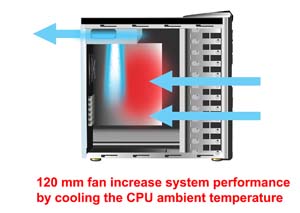

- Super silent operation with intelligent fan speed control (<
20dBA)
- Support dual +12V1 and +12V2 outputs for higher power usage
- Green power design to meet energy star and blue angle
requirement
- More 75% efficiency at typical load operation
- Higher reliability (MTBF > 400,000 hours)
- OVP / OCP / OTP / OLP / Short / Full protection
- Active power factor correction (PF > 0.99)
- Real power capacity satisfy hi-end system operation
|

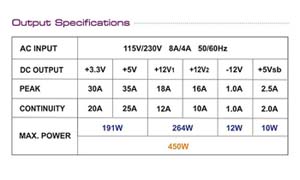

 pecifcations
Cooler Master Super Silent Real Power RS-450-ACLY Active PFC 450W
Power Supply
|
Type |
ATX Form Factor |
|
Fan |
One 120 mm |
|
Input Voltage |
90~264V
(Auto-range) for Active |
|
Input Current |
8A @ 115Vac / 4A
@ 230Vac |
|
Input
Frequency Range |
47~63 Hz |
|
Power Good
Signal |
100 ~ 500 ms |
|
Hold Up Time |
> 17ms |
|
Efficiency |
> 75% Typically |
|
Output
Capacity |
450W Continually |
|
MTBF |
> 400,000 Hours |
|
Dimension |
Standard ATX 150
x 140 x 86 (mm) |
|
Operation
Temperature |
0~40℃ |
|
Safety |
Nemko / TUV /
cUL / CE / CNS |
|
Operation
Altitude |
10,000 ft |
|
Storage
Altitude |
50,000 ft |
|
Operation
Temperature |
5 ~ 50℃ / 90% RH
(non-condensing) |
|
Storage
Temperature |
(-)40 ~ +70℃ /
95% RH (non-condensing) |
|

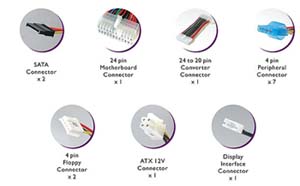

Cable Length |
24 pin
Motherboard Connector 600 mm |
|
|
ATX 12V
Connector 600 mm |
|
|
4 pin Peripheral
Connector 600mm |
|
|
SATA Connector
600mm + 200 mm |
|
|
Display
Interface Connector 800 mm |
|
|
4 pin Floppy
Connector 150mm |
|
dditional
Information
Cooler Master Super Silent Real Power RS-450-ACLY Active PFC 450W
Power Supply
Click to Enlarge:
|
|
