Cooler Master High Efficiency IGreen 500 Watt Power Supply (RS-500-ASAA)- SLI Certified



Details:
SKU:rs-500-asaa
View from manufacture
bout

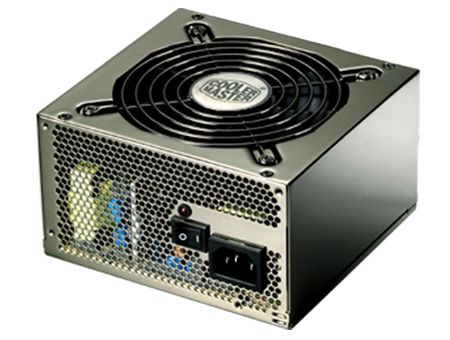

Cooler Master High Efficiency IGreen 500 Watt Power Supply (RS-500-ASAA)- SLI Certified

Cooler Master's power supply has been praised highly of its high efficiency and stability. In the year of 2006, Cooler Master will launch a new series of power supply iGreen Power 430W/500W/600W.
iGreen Power is the world first power supply which achieves 85% efficiency through Double Forward Switching Circuit Technology. This intelligent circuit configuration stabilizes your running system without costing you a fortune.
While staying true to our original mission to provide the best products, Cooler Master is responding to the environmental concern around our globe. We make this iGreen environmental friendly - it has met the Energy Star and Blue Angel requirements.

eatures

Cooler Master High Efficiency IGreen 500 Watt Power Supply (RS-500-ASAA)- SLI Certified



1. Intelligent Circuit Configuration
* No.1 Double Forward Switching Circuit Technology for 85% Efficiency
* Intelligent circuit configuration for higher stability and reliability
* Super silent operation with intelligent fan speed controller
2. Green Power Product
* Green power design to meet “Energy Star” and “Blue Angel” requirements for energy and money saving
* RoHS Compliance
3. High Performance
* Compliance with the newest Intel® standard ATX 12V V 2.2
* Compliance with the newest SSI standard EPS 12V V2.91
* With 5Vsb increasing from 2A to 3A, it could support up to 8~10pcs USB devices.
* USB devices could be charged when your PC is power off.
* 120mm dual ball bearing fan makes superb heat dissipation at low noise (17dBA)
* Sleeved Cables for neat management and airflow improvement.
4. High Reliability
* Life expectancy: MTBF > 400,000 hours
* Passing Over-Voltage, Under-Voltage, Over-Temperature, Over-Current, Over-Loading, and
* Short Circuit Protection
* Passing 100% burn-in, hi-pot & ATE tested
5. Worry Free While you work or play
* Power Failure Detector will light up when Over-Voltage, Under-Voltage, Over-Temperature, Over-Current, Over-Loading, and Short circuit occur.
* PCI-e connector with bead core protection to minimize EMI for reducing noises.
* Multi-GPU Ready: Dual PCI-e connectors
* SLI-certified Licensee Product
pecifcations

Cooler Master High Efficiency IGreen 500 Watt Power Supply (RS-500-ASAA)- SLI Certified



Model RS-500-ASAA
PFC Active PFC (0.99)
Type ATX Form Factor 12V V2.2 / SSI standard EPS 12V V2.91
Input Voltage 90 ~ 264V (Auto Range)
Input Current 10A @ 115Vac / 5A @ 230Vac
Input Frequency Range 47 ~ 63 Hz
Fan Dual ball bearing 120mm fan
Power Good Signal 100 ~ 500 ms
Hold Up Time > 17 ms
Efficiency (Load) 81% (100W) / 85% (250W) / 82% (500W)
MTBF >400,000 hrs
Output Capacity 500 Watts Continuous
Max. Output Capacity 600 Watts
Protection OVP / UVP / OTP / OCP / OLP / OPP / SCP
Dimension Standard ATX 150 x 140 x 86 (mm)
Operation Temperature 5~50℃(Nominal Input Voltage)
Safety Nemko / TUV / cUL / CE / BSMI / FCC / CCC


dditional Information

Cooler Master High Efficiency IGreen 500 Watt Power Supply (RS-500-ASAA)- SLI Certified

Product Release Sheet: Cooler Master IGreen Power 500W

User's Manual: Cooler Master IGreen Power 500W
