| Introduction:
Cooler Master's newly released eXtreme Power 650W allows your PC to operate
more efficiently. The green power design meets Energy Star and Blue Angel
requirements. The eXtreme Power 650W also enhances system reliability by
preventing abnormal spikes and surges.
Features:
Compliance with the newest Intel standard ATX 12V V 2.01
Super silent operation with intelligent fan speed control (< 20dBA)
Support dual +12V and+12V outputs for higher power usage
Green power design to meet energy star and blue angel requirements
More than 70% efficiency at typical load operation
Higher reliability (MTBF > 100,000 hours)
OVP / OPP / Short Circuit Protection

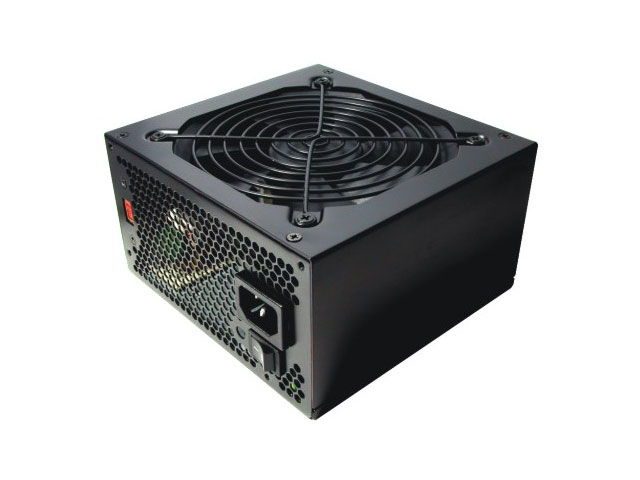

Model: Cooler Master RP-650-PCAR
Specifications:
Model |
RP-650-PCAR (Regular) |
Type |
ATX from factor 12V V2.01 |
Input Voltage |
90~132V / 180~260 V (Selectable) |
Input Current |
6.3A@230Vac |
Input Frequency Range |
47~63Hz |
Fan |
Sleeve bearing 120mm fan |
Power Good Signal |
100-500ms |
Hold Up Time |
>17ms |
Efficiency |
>70% typically |
MTBF |
>100,000 hrs |
Protection |
OVP / OPP / Short Circuit Protection |
Dimension |
Standard ATX PS2 150 x 140 x 86 mm |
Operation Temperature |
5~50℃ |
Safety |
Nemko / TUV / cUL / CE / BSMI / FCC / CCC |
|
