 bout

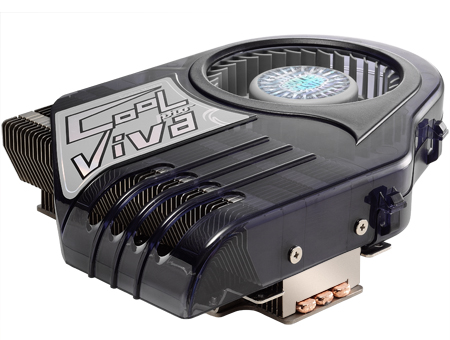

Cooler Master CoolViva Pro (RV-UCH-P7U1-GP) VGA Cooler - Compatible
with nVIDIA / ATI cards, Cool GPU, MOSFET and Memory
Universal clip design suits for ATI/
nVIDIA cards
Complete Cooling Solution
Silent operation at only 20 dBA
Cool GPU, MOSFET and Memory
8 memory heat sinks included
|
 eatures
Cooler Master CoolViva Pro (RV-UCH-P7U1-GP) VGA Cooler -
Compatible with nVIDIA / ATI cards, Cool GPU, MOSFET and Memory
- Universal clip design for ATI/ nVIDIA cards
- Copper base with 3 heat pipes provides
superior cooling performance
- Unique fan design helps draw cool air from
both top and bottom inlets cooling MOSFET and Memory
- Ventilated PCI-bracket design helps direct
hot airflow out of the chassis
- Silent operation at only 20 dBA
- 8 memory heat sinks included
- RoHS compliance for protecting the
environment
|
 pecifcations
Cooler Master CoolViva Pro (RV-UCH-P7U1-GP) VGA Cooler - Compatible
with nVIDIA / ATI cards, Cool GPU, MOSFET and Memory
|
Overall Dimensions |
178.5 x 130 x 41mm (7.03in x 5.12in x
1.61in) |
|
Heatsink Material |
Aluminum fin / copper base / 3 heat
pipes |
|
Heatsink Dimensions |
145 x 112 x 38 mm (5.71in x 4.41in x
1.50in) |
|
Weight |
320 g |
|
Fan Dimensions |
74 x 74 x 22.5 mm |
|
Bearing Type |
2 Ball Bearing |
|
Fan Speed |
700~1800 ± 10% R.P.M. |
|
Noise |
20 dBA |
|
Rated Voltage |
12 V |
|
Memory Heat sink |
8 pcs |
|
Dimensions |
13 x 12 x 8.88 mm |
|
Material |
Aluminum |
|
dditional
Information
Cooler Master CoolViva Pro (RV-UCH-P7U1-GP) VGA Cooler -
Compatible with nVIDIA / ATI cards, Cool GPU, MOSFET and Memory
|
|
