| Product Description
Power Supply is a key component to supply all power
requirements in supporting PC operation to maintain continuous stability and
reliability of a computer system. Cooler Master's power supply lets your PC
operate better and more efficient, with the best power source as it comes into
your PC. It also enhances system reliability by preventing mains abnormal supply
from spikes and surges. In addition, the power supply provides your system with
perfect protection. The RS-450-ACLX is a standard ATX-12V PS2 power supply
offering more power capacity for CPU usage.
Main Specifications
|
| Product Description |

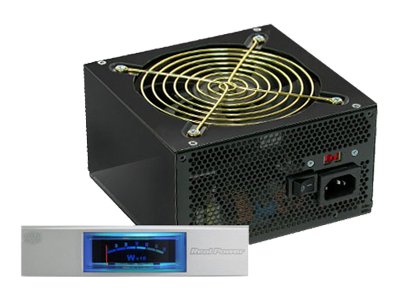

CoolerMaster Real Power RS-450-ACLX - power supply - 450
Watt |
| Device Type |
Power supply |
| Form Factor |
Internal |
| Specification Compliance |
ATX12V 2.0 |
| Dimensions (WxDxH) |
5.9 in x 5.5 in x 3.4 in |
| Output Voltage |
+3.3, +5, ±12 V |
| Power Provided |
450 Watt |
| Output connector(s) |
4 pin internal power, 4 pin mini-power connector, power 20
pin ATX, power 4 pin ATX12V connector, power AUX, 15 pin Serial ATA power,
power 24 pin main output |
| Manufacturer Warranty |
3 years warranty |
General
|
| Device Type |
Power supply |
| Form Factor |
Internal |
| Specification Compliance |
ATX12V 2.0 |
| Width |
5.9 in |
| Depth |
5.5 in |
| Height |
3.4 in |
| Enclosure Color |
Black |
Power Device
|
| Input Voltage Range |
AC 90 - 132 / 180 - 264 V |
| Frequency Required |
47 - 63 Hz |
| Input Connector(s) |
1 x power |
| Output Voltage |
+3.3, +5, ±12 V |
| Output connector(s) |
4 pin internal power, 4 pin mini-power connector, power 20
pin ATX, power 4 pin ATX12V connector, power AUX, 15 pin Serial ATA power,
power 24 pin main output |
| Power Output Connectors Details |
1 x power 24 pin main output
2 x 15 pin Serial ATA power
7 x 4 pin internal power
2 x 4 pin mini-power connector
1 x power 20 pin ATX
1 x power 4 pin ATX12V connector |
| Power Provided |
450 Watt |
Miscellaneous
|
| MTBF |
100,000 hour(s) |
| Compliant Standards |
CE, TUV, cUL, NEMKO, FCC |
Manufacturer Warranty
|
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - 3 years |
Environmental Parameters
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Sound Emission |
20 dBA |
|
