Cooler Master Real Power RS-550-ACLY 550Watt Power Supply with Active power factor correction



Details:
SKU:rs550acly
View from manufacture
bout

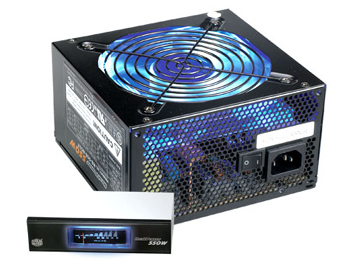

Cooler Master RS-550-ACLY 550Watt Power Supply

Continue to Real Power 450W's good reputation, Cooler Master releases new Real Power 550W, It follows compliance with the newest Intel standard ATX 12V V 2.01 and SSI standard EPS 12V V2.1 simultaneously, especially for mini server, or workstation and high-end graphic card system, including output for the new PCI Express VGA Card.

eatures

Cooler Master RS-550-ACLY 550Watt Power Supply
  • Compliance with the newest Intel® standard ATX 12V V 2.01
  • Compliance with the newest SSI standard EPS 12V V2.1
  • Super silent operation with intelligent fan speed control (< 23dBA)
  • Power consumption management by human computer interface (HCI)
  • PCI-e connector satisfy high end graphic card requirement
  • Support +12V1, +12V2 and + 12V3 outputs for higher power usage
  • Green power design to meet energy star and blue angel requirement
  • More than 75% efficiency at typical load operation
  • Higher reliability (MTBF > 400,000 hours)
  • OVP / OCP / OTP / OLP / Short / Full protection
  • Active power factor correction (PF > 0.99)
  • Real power capacity satisfy high-end system operation
pecifcations

Cooler Master RS-550-ACLY 550Watt Power Supply



Type Intel® ATX12V V2.01 Form Factor / SSI EPS12V V2.1 Form Factor
PFC Active PFC (PF>0.99)
Input Voltage 90V~264V (Auto Range)
Input Current 10A at 115Vac / 5A at 230Vac
Input Frequency Range 47 ~ 63 Hz
Power Good Signal 100 ~ 500 ms
Hold Up Time > 17 ms
Efficiency > 75% Typically
Output Capacity 550W Continually
Output Peak Capacity 650W
Dimensions Standard ATX 150 x 140 x 86 (mm)
Operation Temperature 0~40℃
MTBF >400,000 hrs
120mm Exhaust Fan Dual Ball Blue LED
EMC CE / BSMI / FCC / CCC
Safety UL / cUL / TUV / NEMKO / BSMI

dditional Information

Cooler Master RS-550-ACLY 550Watt Power Supply

Product Release Sheet: Cooler Master RS-550-ACLY 550Watt Power Supply
