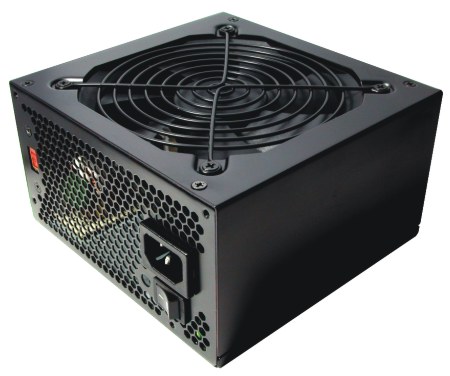

COOLER MASTER RP-550-PCAR EXTREME POWER 550W ATX12V 2.0 POWER SUPPLY 713001630



Details:
SKU:RP-550-PCAR
View from manufacture
Cooler Master's newly released eXtreme Power 550W allows your PC to operate more efficiently. The green power design meets Energy Star and Blue Angel requirements. The eXtreme Power 550W also enhances system reliability by preventing abnormal spikes and surges.



  Features

- Compliance with the newest Intel standard ATX 12V V 2.01
- Super silent operation with intelligent fan speed control (< 20dBA)
- Support dual +12V and+12V outputs for higher power usage
- Green power design to meet energy star and blue angel requirements
- More than 70% efficiency at typical load operation
- Higher reliability (MTBF > 100,000 hours)
- OVP / OPP / Short Circuit Protection



  Specifications
Model RP-550-PCAR (Non- PFC)
Type ATX from factor 12V V2.01
Input Voltage 180~264V
Input Voltage (Regular) 90~132V / 180~260 V (Selectable)
Input Current 6.3A@230Vac / 8A@115Vac
Input Frequency Range 47~63Hz
Fan Sleeve bearing 120mm fan
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency >70% typically
MTBF >100,000 hrs
Protection OVP / OPP / Short Circuit Protection
Dimension Standard ATX PS2 150 x 140 x 86 mm
Operation Temperature 5~50 Celsius
Safety Nemko / TUV / cUL / CE / BSMI / FCC / CCC
